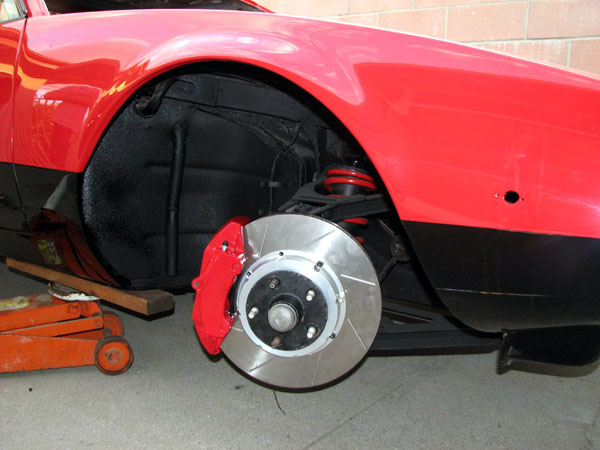

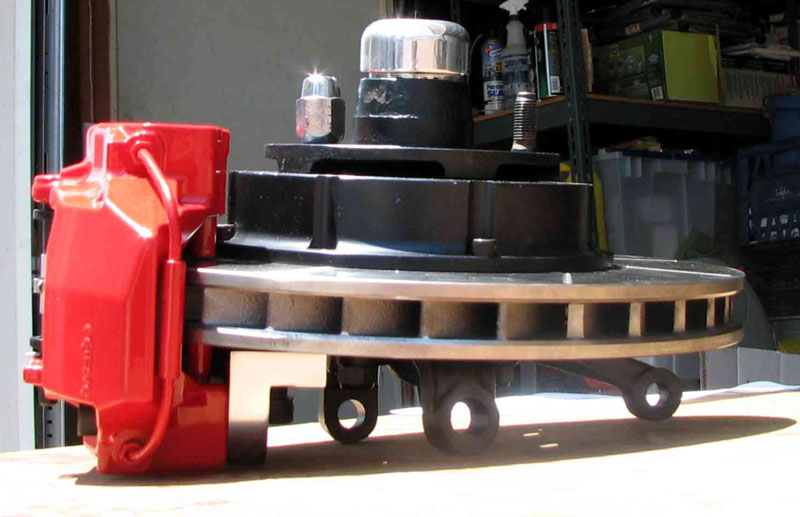

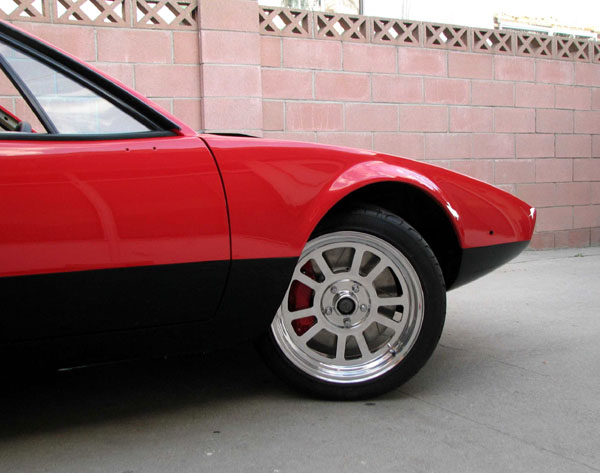

Pictures of the front hub with a Porsche 996T caliper on
a 13 inch Coleman vented and vaned rotor.

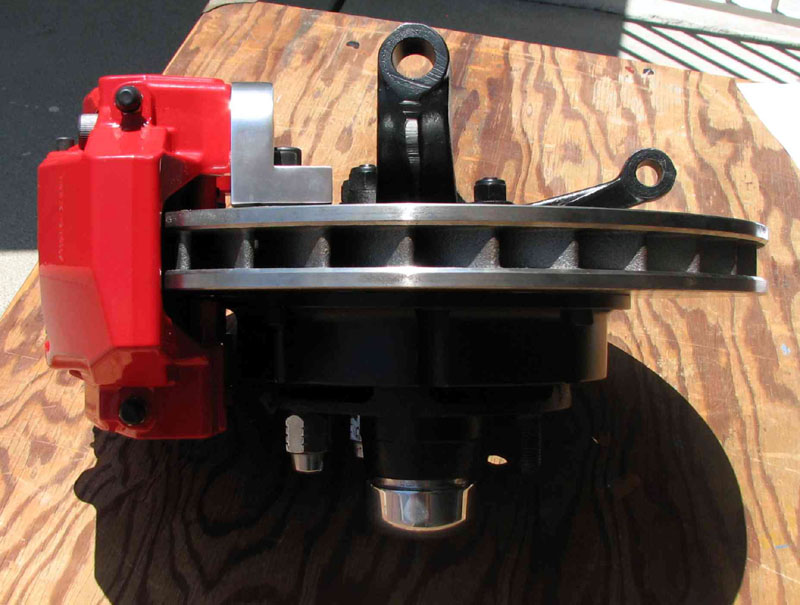

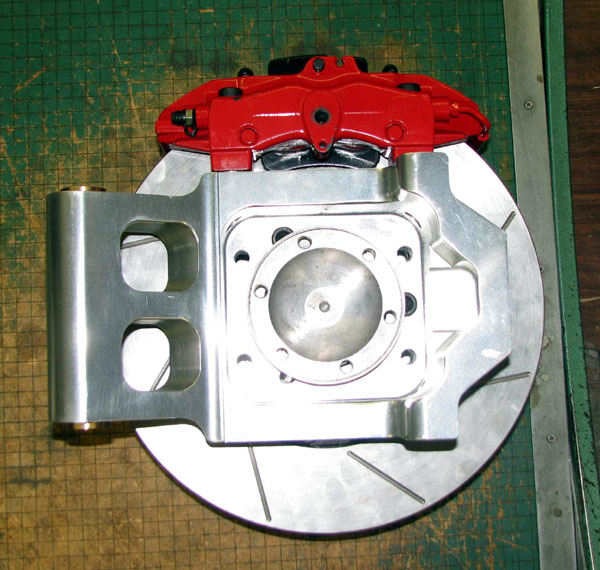

Shown here is one of the (front) prototype brake hubs:
Billet Carrier/CV Half Shaft/Brake Upgrade
The Kit includes: 2 billet
aluminum carriers (polished and anodized); 2 hub and bearing

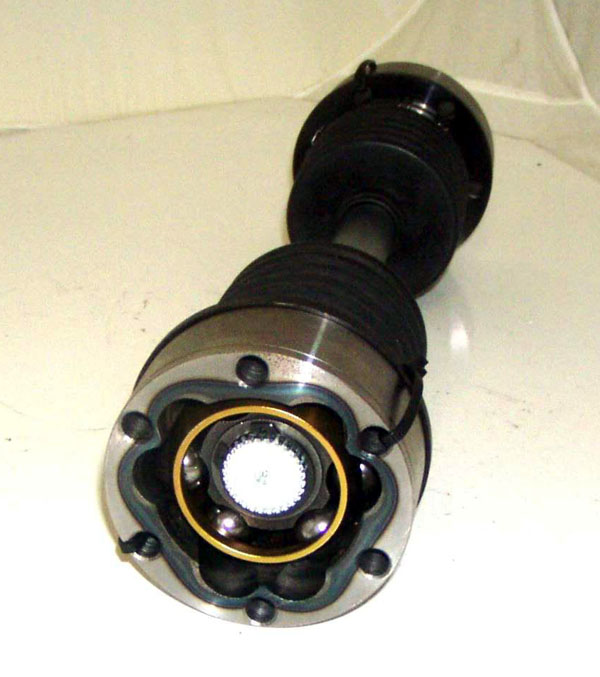

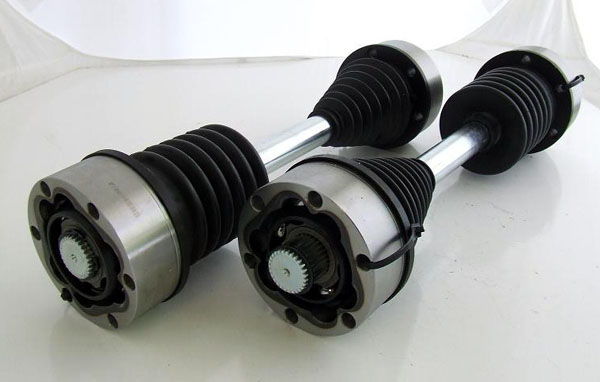

assemblies; 2 stub axles; 2 930 CV half shafts with adapters
for the ZF; 2 rear hats; 2 front hats; and 2 brackets to
mount Porsche 996 Turbo calipers to front. Current price: $3,300
300M high strength axles are available as a $400 option for high HP
engines. To complete, requires: set of 996 Turbo calipers,
estimate $800 to $1,000 for an good used set; and set of four
Coleman rotors, estimate $600 to $700 depending on options.
May require an updated master cylinder
and a dual master cylinder assembly is recommended.
Contact Ed at German Auto in Sante
Fe Springs to order: 562-863-1123

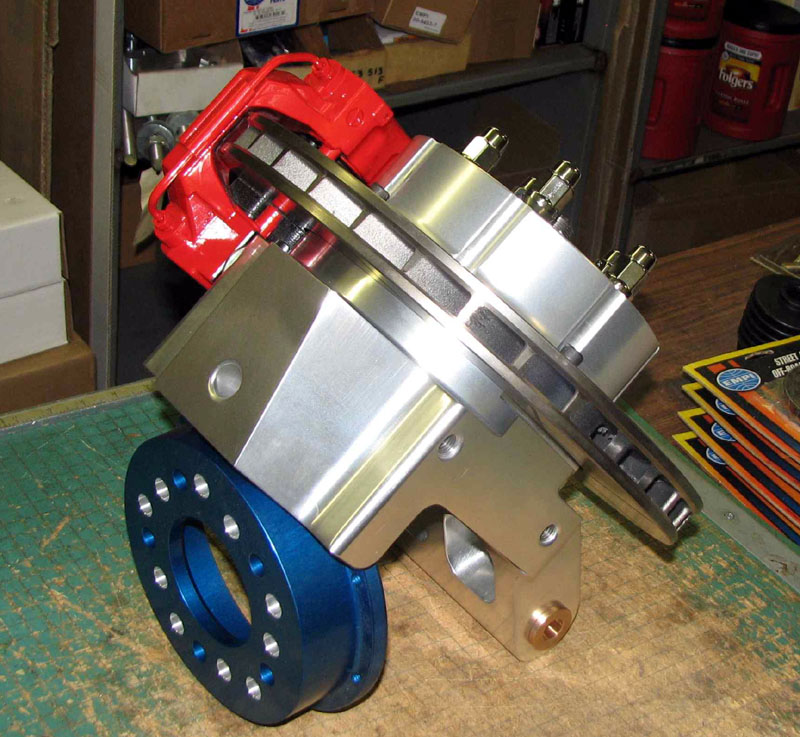

The following shows elements of the
kit and partial assembly with Porsche 996 Turbo calipers and 13
inch Coleman rotors.

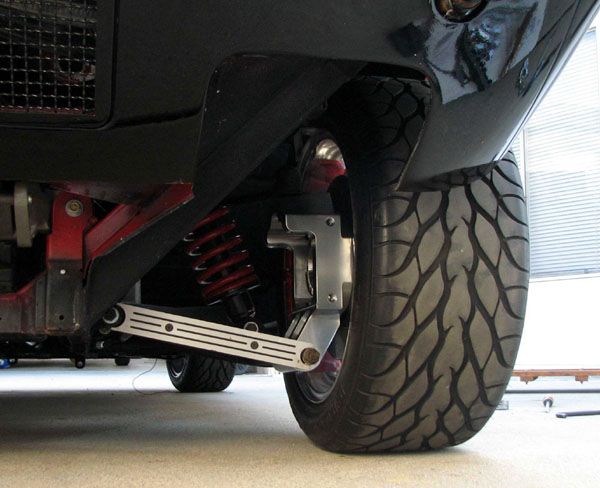

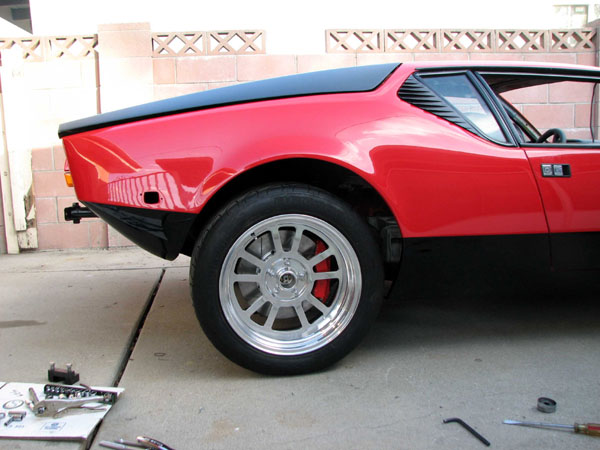

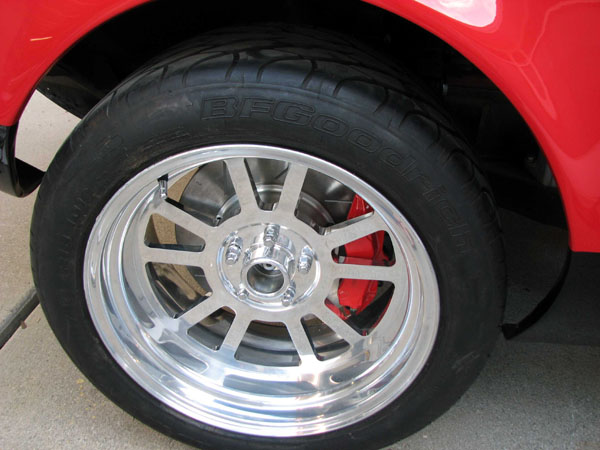

Installation

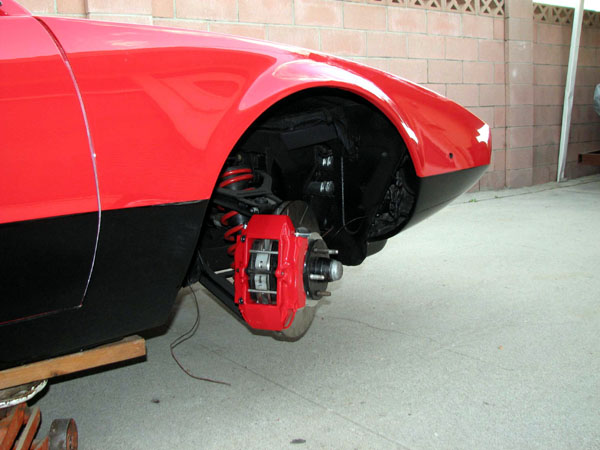

Front

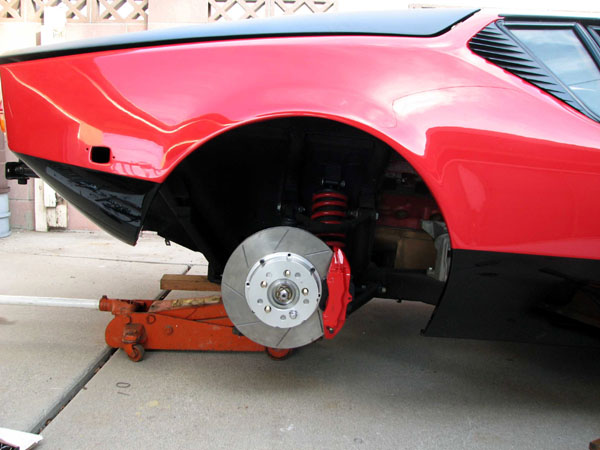

Rear

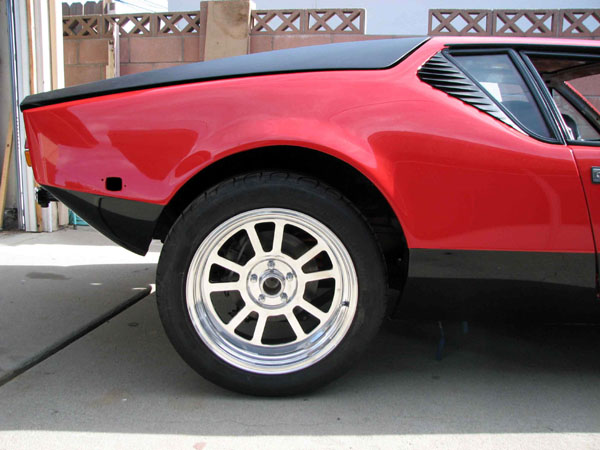

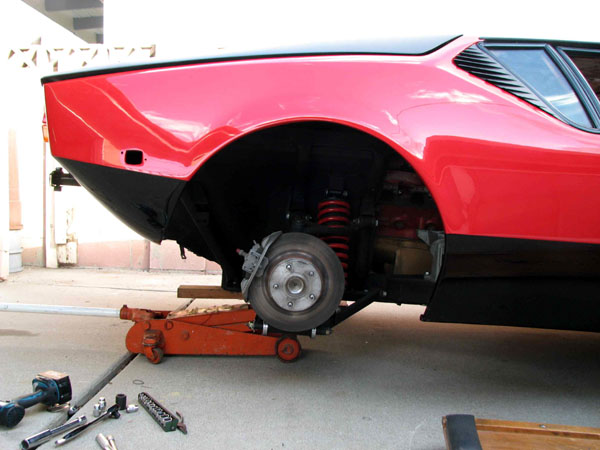

Stock rear brakes

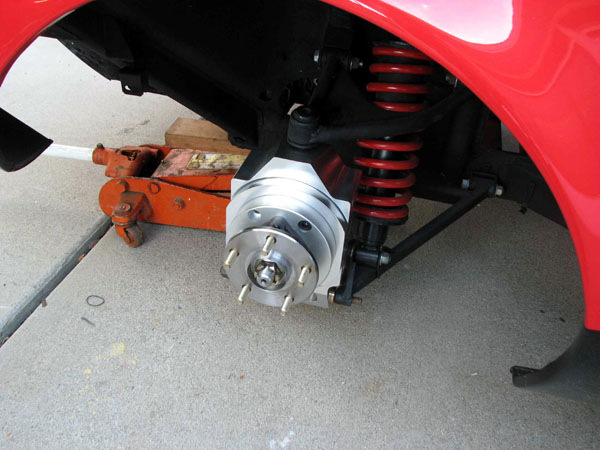

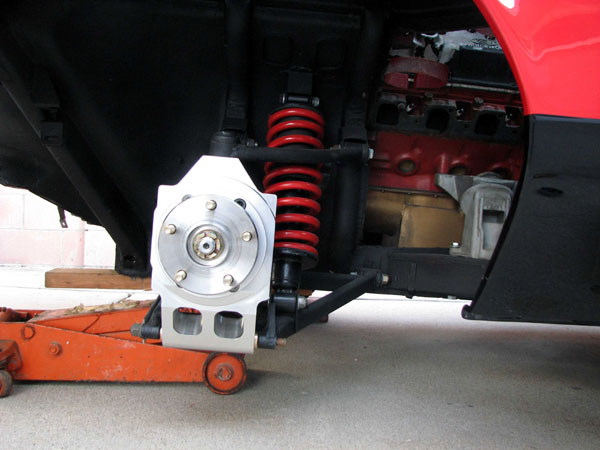

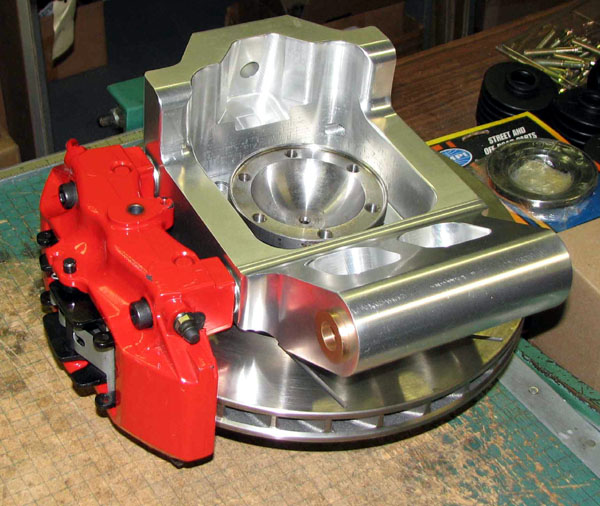

New Carrier
|
